W pełni automatyczny cylinder Grooving Case Make for Grey board / MDF do 3,0 mm Bez pyłu
Post Press Machine
,automatyczne maszyny pakujące
,automatyczna maszyna do rowkowania szarej płyty
Fully auto cylinder Grooving Post Press Equipment for Grey board / MDF upto 3.0mm Dust Free
This Auto grooving machine is designed for industrial cardboard, grey board, MDF grooving
It adopts auto belt feeding, auto feeding correction, auto waste collecting, high accuracy, dust free, no noise, high efficiency, energy saving and environment protection.
Features:
1, slotting effect: no edges, no dust, V groove surface smooth.
2, environmental protection and energy saving: The total power consumption 3.7kw, cardboard slotted angle materials a whole intact recoverable (recycling material under the angle to arrive tariff revenue and tool consumption), low noise.
3, the production efficiency: automatic plate feeding speed 8 hours can produce about 30,000 boxes.

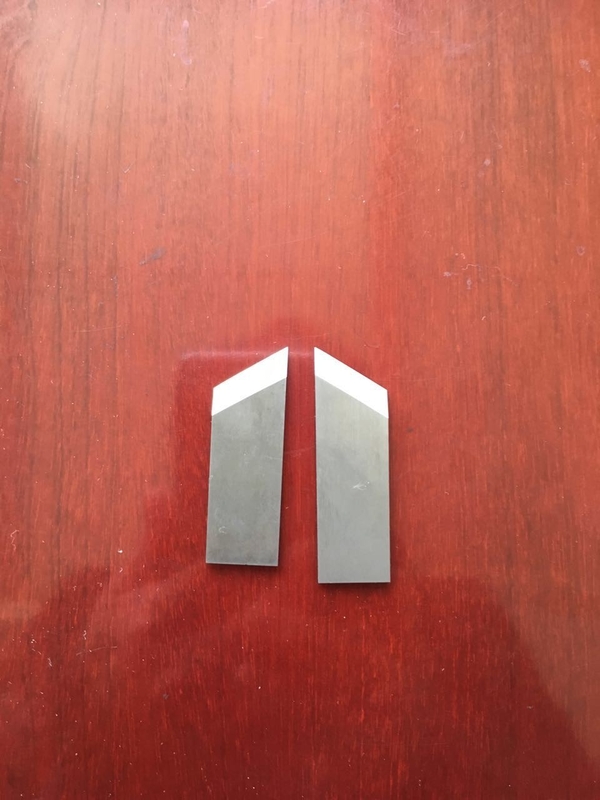

4, tool life: with a special sharpener (simple), grinding a knife just 2 minutes, customers can own sharpening.
5, the tool angle adjustable: two separate blade fixed with clamps, different angles without custom blades, can adjust itself on the machine.
6, no need to adjust the different thickness of cardboard can be slotted, easy to use.
Technical Parameters
|
Feeding size width |
Width 50-850mm |
|
Feeding size length |
Length 110-950mm |
|
Accuracy highest |
±0.05mm |
|
Accuracy normal |
+/-0.1mm |
|
Highest speed |
30-32M/min (200x200mm) 110-120pcs/mins |
|
Normal speed |
20-25M/min(200x200mm)70-90pcs/min, 20-25m/min |
|
Grooving angle |
80-140 degree adjustable |
|
Board thickness |
300gsm-3.0mm |
|
Grooving lines |
9 lines at the same time |
|
Total power |
3.0kw |
|
Machine size |
2100x1400x1350mm |
|
Machine weight |
1480KG |
-
Wysoka - Koniec Wersja 400W 600W 800W urządzenie do cięcia laserowego Die Maker Nadzorczej
MPS-DS1212 SERIES OF HIGH-END VERSION LASER CUTTING MACHINE FOR DIE BOARD MAKER MPS-DS, the high-end version of medium power laser cutting machine, adopts the principle of constant light path design.it keeps laser in the process of device running, materials are fixed on the platform with the moving platform, thus, it can ensure the stability of the optical path. The advantage of this laser cutting machine: 1. The laser cutting machine equipped with the laser generators
-
Laserowa maszyna do cięcia 1000W / 1500W / 2200W Szybki generator przepływu do produkcji matryc
1500W 3 Phase Metal Laser Cutting Machine for die cutting Factory Specifications: Model PMH-1812 Laser generator power 1500W max. Laser beam wave 10.6 m Power adjustment 50-1500W X axis travel 1250mm Y-axis travel 1850mm Positioning accuracy +/- 0.05mm/m Maximum positioning speed 10m/minute max. Control system motion control card / NC Transmission system screw guide Driving system Three-axis servo drive system Optical system X axis Laser moves Y axis table moves Moving system
-
W pełni automatyczna automatyczna giętarka z wycinaniem i krawędziowaniem do gięcia Model 910C do linijki stalowej 1,5/2/3pt
Completely Computer Control Diecutting rule Auto Bending Machine for Dieboard making Main technical specifications 90 ° minimum R no repair knife 1.5 mm (support blade thickness 0.71) 2.0mm (support blade thickness 1.07) 180 ° minimum R no repair knife 2.5mm (support blade thickness 0.71) 3mm (support blade thickness 1.07) Maximum bending $ 1000 mm Maximum bending angle 120 ° Minimum 90 ° bend size 3 mm Minimum bending full circle diameter 5mm Feeding accuracy ± 0.05mm Tail
-
Druk cyfrowy / Graphic Paper Ekspresowy Druk Jednostka hydrauliczna maszyna do cięcia
Hydraulic paper cutting machine Guillotine for Digital Printing for Graphic Express Printing Unit Product Description: Cutting knife and paperweight are controlled by hydraulic transmission. Fully hydraulic drive makes the machine more secure and imported hydraulic parts ensure the stability of the system. The machine has the function of a reference setting and keeping, and the effectiveness of the reference and self-diagnostic function; infrared protection and hands button
